MT-09

The industry benchmark in Hyper Naked performance with razor sharp handling, thrilling 890cc triple‑cylinder power, class-leading technology and a radical new look.

specifications

Explore the key features and performance details of this Yamaha model. From engine power to design elements, every spec is built for excellence. Discover what makes this bike a true standout on the road.

engine

  • Engine Type: 890cc liquid-cooled; DOHC; inline 3-cylinder; 4 valves per cylinder
  • Bore x Stroke: 78.0mm x 62.1mm
  • Compression Ratio: 11.5 – 1
  • Fuel Delivery: Fuel injection with YCC-T
  • Ignition: TCI – Transistor Controlled Ignition
  • Transmission: 6-speed; multiplate assist and slipper clutch,  Final Drive
  • Fuel Capacity: 3.7 gal

chasis

  • Suspension/Front: 41mm inverted fork; adjustable preload; compression and rebound; 5.1-in travel
  • Suspension/Rear: Single shock; adjustable preload and rebound damping; 4.6-in travel
  • Brakes/Front: Dual 298mm hydraulic disc; ABS
  • Brakes/Rear: 245mm hydraulic disc; ABS
  • Tires/Front: 120/70ZR17 Bridgestone® Battlax Hypersport S23
  • Tires/Rear: 180/55ZR17 Bridgestone® Battlax Hypersport S23

dimensions

  • LxWxH: 82.3 in x 32.3 in x 45.1 in
  • Seat Height: 32.5 in
  • Wheelbase: 56.3 in
  • Rake (Caster Angle): 24.7°
  • Trail: 4.3 in
  • Max. Ground Clearance: 5.5 in
  • Fuel Economy**: 48 MPG
  • Wet Weight***: 425 lb

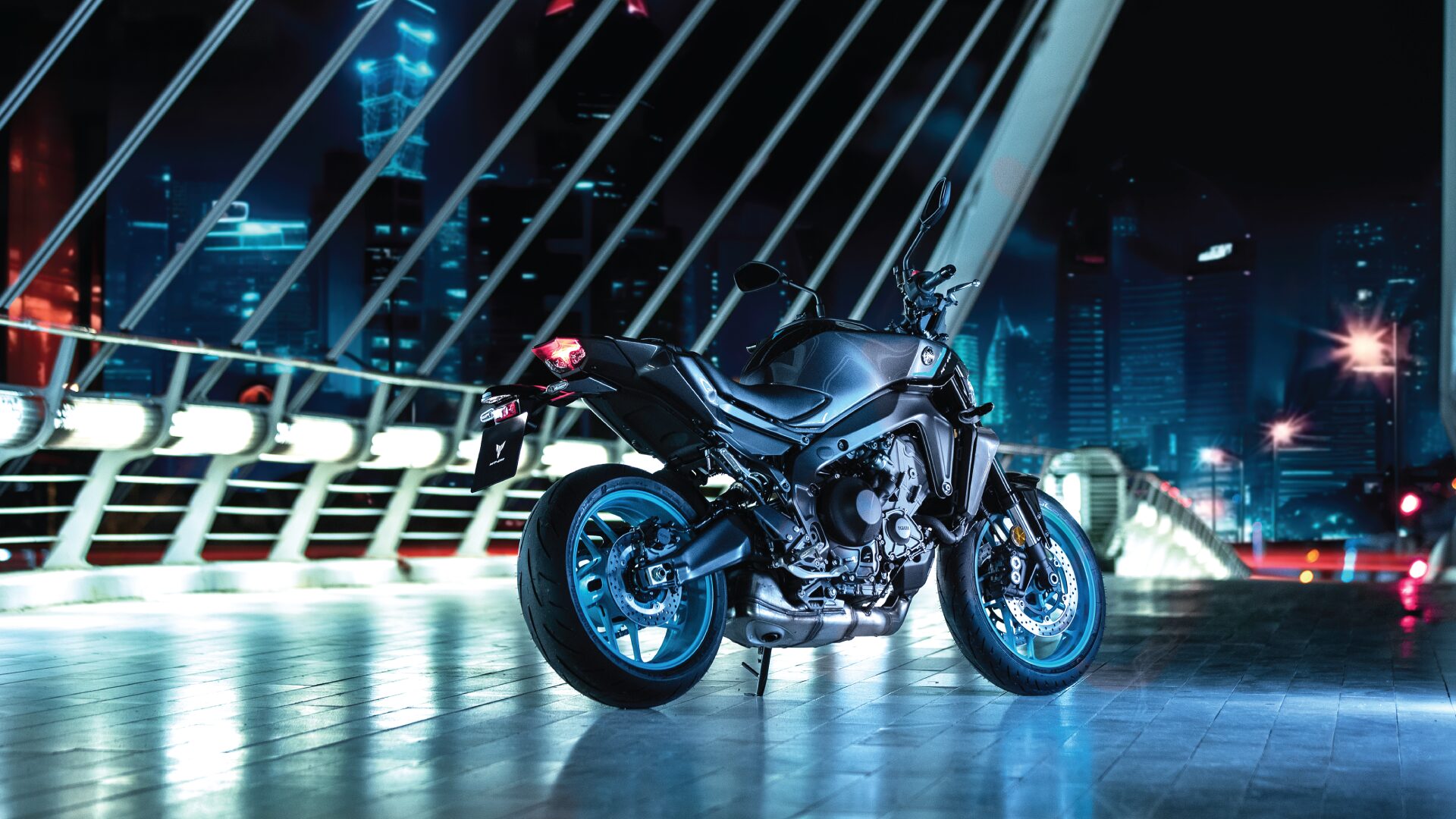

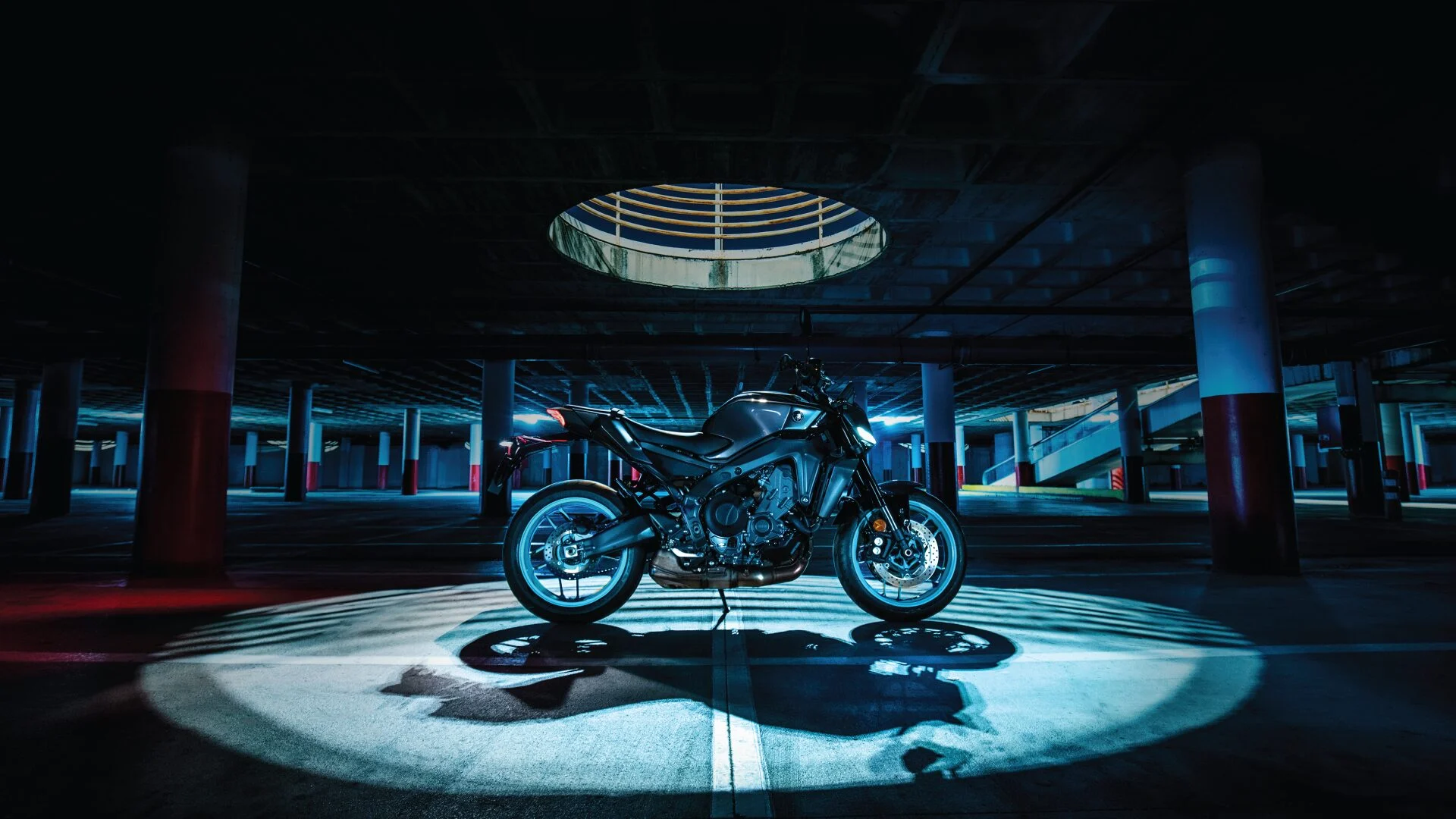

bike gallery

Take a closer look at this machine in action. This bike isn’t just built for the road – it’s built for the ride of your life. Swipe through the gallery and feel the thrill in every detail.
